Overview

NCSIMUL NCdoc is an integrated tool within NCSIMUL Machine that automates the creation of instruction sheets tailored for CNC operators. By leveraging 3D technologies and real-time synchronization, it ensures that operators have immediate access to accurate and up-to-date technical documentation directly at their machines. This integration streamlines the manufacturing process, reduces the risk of misinterpretation, and enhances overall shop communication.

Features and Capabilities

• Automatic Generation of Technical Sheets: Quickly produce and edit essential documents for CNC operators, ensuring a reliable manufacturing process without misinterpretation.

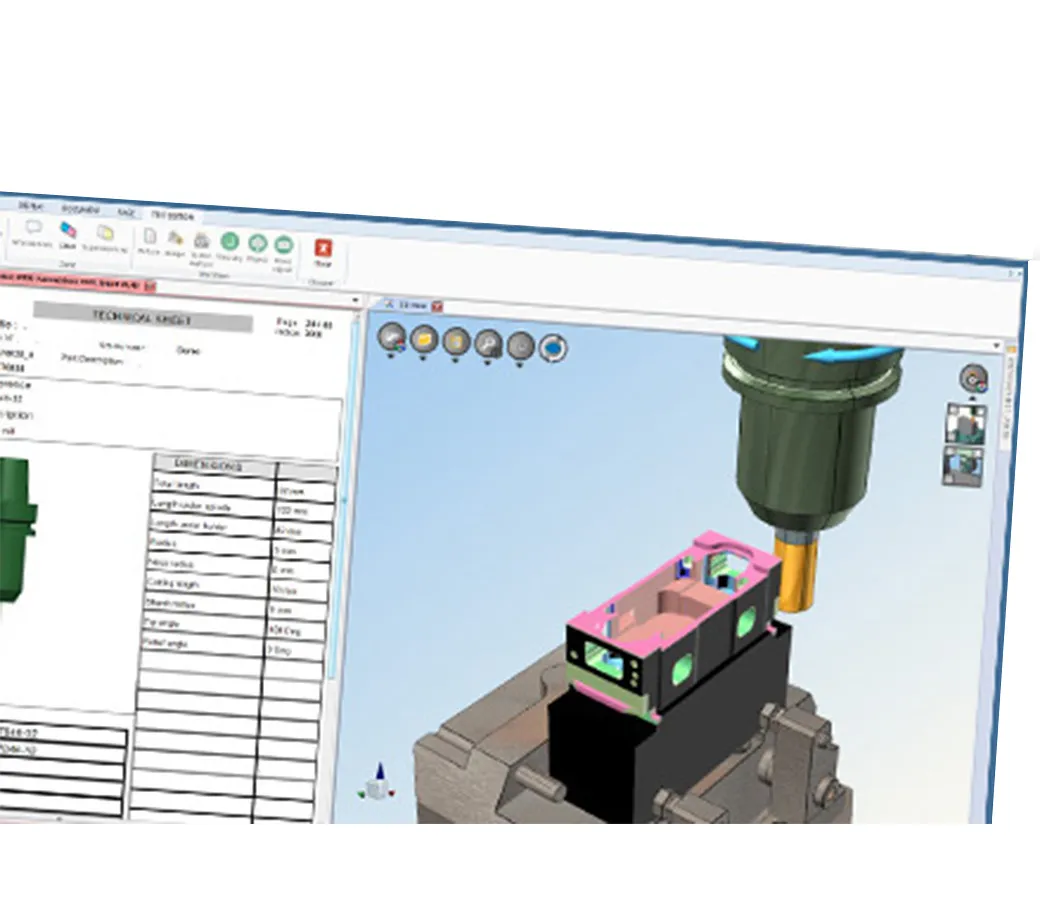

• 3D Simulation Integration: Utilize 3D technologies employed by CAM programmers, integrating tool parameters, G-code, and the virtual machine environment to enhance the accuracy of technical documentation.
• Tool Sheets: Provide detailed information on tool characteristics, including identifiers, component lists, settings, and 3D visuals of tools.
• Process Sheets: Offer comprehensive descriptions of machining processes, covering clamp assemblies, spindle speeds, feed rates, and tool compensation data.
• Instruction Sheets: Allow customization based on user needs, detailing actions (machine stops), machining history, and operation checklists.
• Control Sheets: Define dimensional checks, including measurement types, locations, nominal values, and associated tolerances.

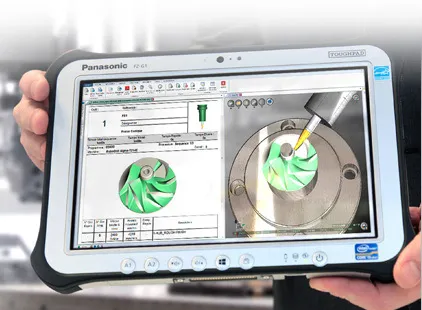

• Real-Time Synchronization: Enable CNC operators and workshop stakeholders to access instruction sheets in real-time, synchronized with the current machining cycle through NCSIMUL Player Synchro.
• One-Click Publishing: Facilitate the automatic generation and publication of technical data to enhance shop communication.
